Oceano Shower Screen 1480 X 900 Front Only Semi-frameless Chrome Finish Louve Square Pivot LS15FC

OCEANO Bathroom products set the standard by providing an innovative, highly functional range of bathroom Shower Screens, Bases and Bathtubs.

Magnetic door seals

Semi-frameless design

Adjustable for out-of-square walls

Reversible for right or left hand application

Chrome finish

Suitable for both Stonelite™ shower base or tiled floor installation

2 metre high shower screens

Front only option available Mix and match sections to suit your requirements

Australian Standards AS/NZ2208, AS1288

Code	Style	Size	Range (mm)
LS82FC	Front	820×2000	750 – 810
LS82RC	Return	820×2000	770 – 800
LS90FC	Front	900×2000	835 – 890
LS90RC	Return	900×2000	850 – 885
LS10FC	Front	1000×2000	935 – 990
LS10RC	Return	1000×2000	950 – 985
LS12FC	Front	1200×2000	1145 – 1195
LS12RC	Return	1200×2000	1150 – 1185
LS15FC	Front	1480×2000	1445 – 1495

---

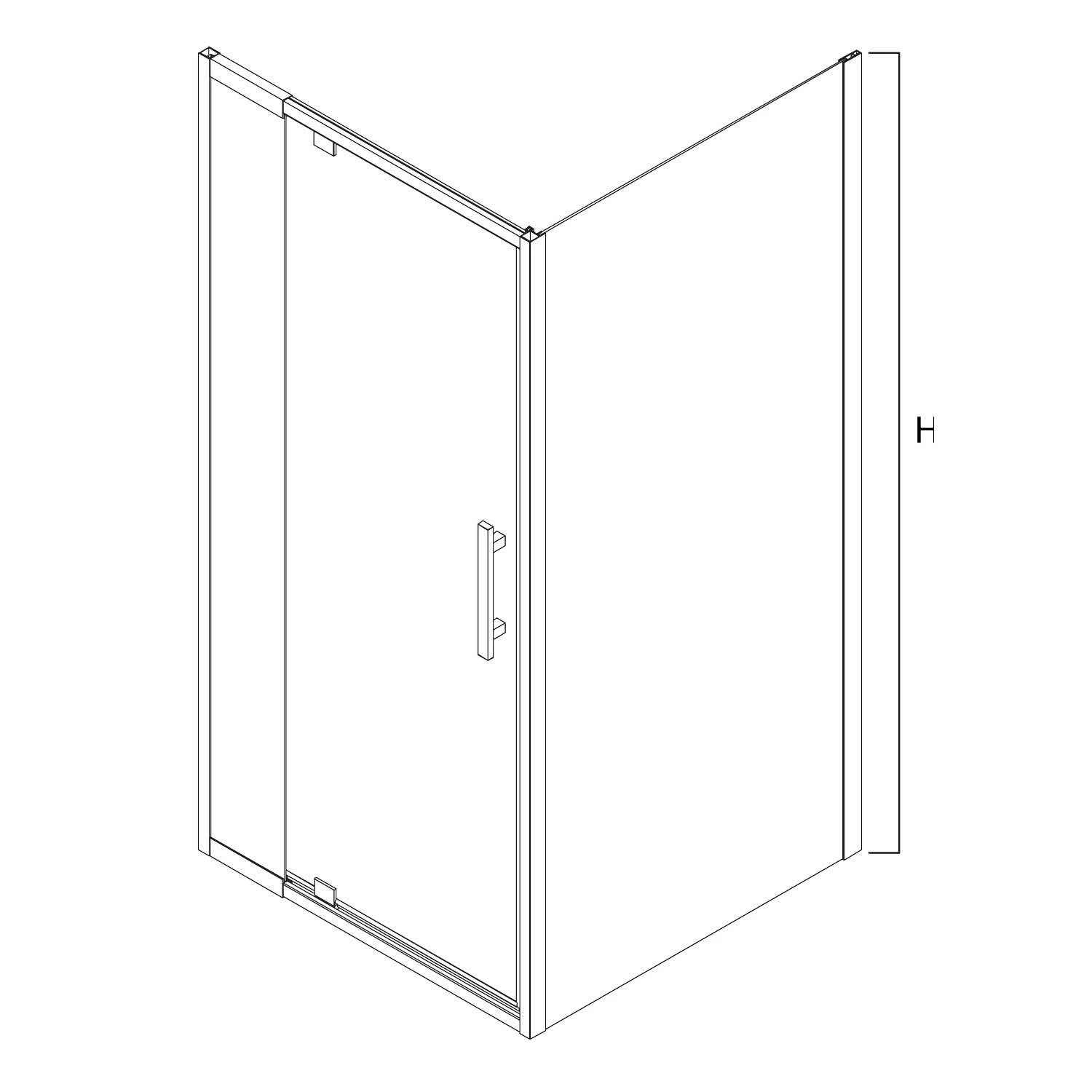

Size	Width – (A)	Depth – (B)	Opening – (C)	Fixed – (D)	Height – (H)
820×820	750 – 810	770 – 800	500	171	2000
900×900	835 – 890	850 – 885	530	224	2000
1000×1000	935 – 990	950 – 985	530	324	2000
1200×900	1145 – 1195	850 – 885	530	534	2000
900×1200	835 – 890
